Details

---

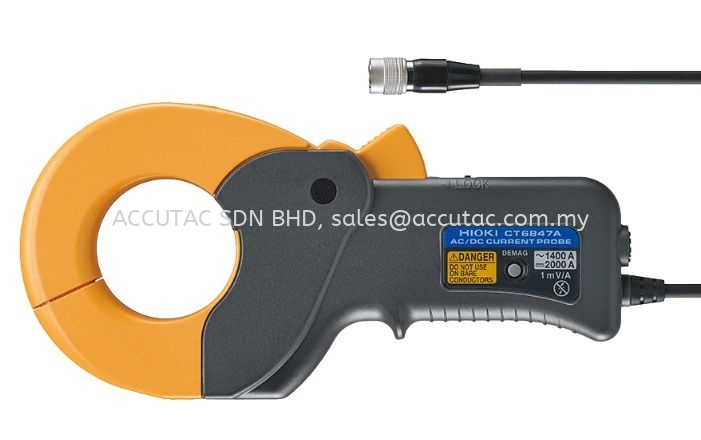

HIOKI CT6847A AC/DC CURRENT PROBE
Accurate Current Measurement with Flexible Clamp-on Design

Hioki precision current clamps enable accurate, non-intrusive AC and DC current measurement without interrupting the circuit.
Precision current clamps are used where accuracy, ease of use, and minimal impact on the test setup are essential, including vehicle on-board measurements (incl. WLTP), power electronics testing, efficiency analysis, and measurements in hard-to-access environments.

Key Features

• Frequency bandwidth DC to 70 kHz, Rated current 2000 A DC, 1400 A AC
• Guaranteed combined accuracy when used with Hioki power analyzers
• Plug-and-play with Hioki Power Analyzer and Memory HiCorders
• Ideal for use in environmental testing with broad -40°C to 85°C temperature range
• Ideal for EV inverter evaluation and PV power generation PCS evaluation
• Single-handed operation and robust locking mechanism
